AX3000 Dual Band WiFi 6 Outdoor WiFi Extender
AX3000 Dual Band WiFi 6 Outdoor WiFi Extender
🌧 IP67 Weatherproof Housing for Outdoor Use
🚀 AX3000 Dual Band WiFi 6 Performance
📡 Point to Point Range Up to 3 km LOS
🔗 Connects Up to 6 Remote Units
⚡ 48V PoE with Gigabit LAN Port
🔒 WPA3 Encrypted Wireless Security
Couldn't load pickup availability
AX3000 Dual Band WiFi 6 Outdoor WiFi Extender
Built for Long Range Outdoor Networking
Designed for structured outdoor deployment, this WiFi 6 extender supports long distance wireless links, secure connectivity, and simplified installation for residential and commercial properties.
Why Choose Us!
BEAM WIFI REPEATER
- 2M Sq Feet / 1000 Feet In Straight Line
- IP65 Waterproof & Dustproof
- AX3000 Mbps Dual-Band WiFi 6 – Seamless Streaming
- State-Of-The-Art WPA3 Secure Encryption
- One-Click WPS Or App Setup In Minutes
- Connects 130+ Devices Simultaneously
OTHER REPEATERS
- Limited to 15000–20000 sq feet
- Often indoor-only, not weatherproof
- Slower speeds, frequent dropouts
- WPA2 or WPA weak security
- Complicated manual setup
- Struggles with more than 15–20 devices

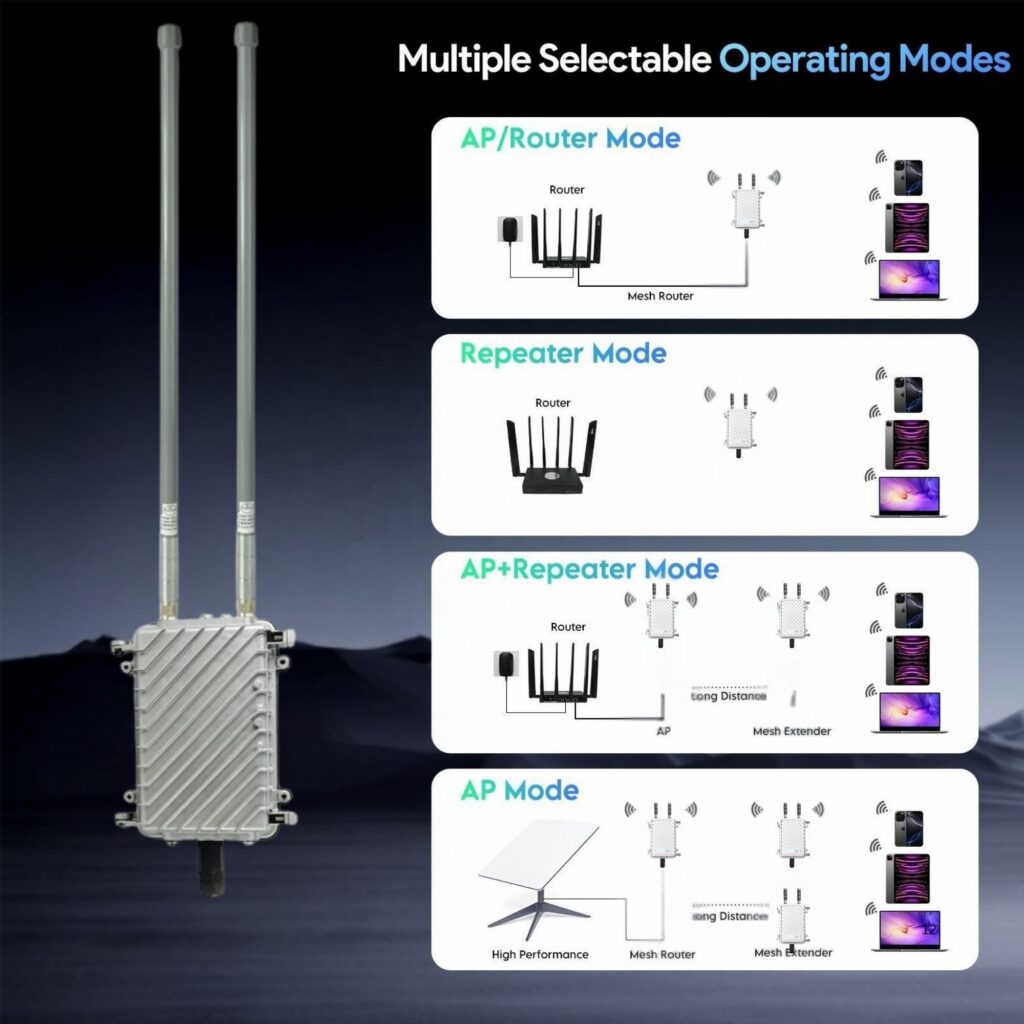

Multiple Operating Modes for Flexible Network Setup
The AX3000 WiFi 6 Outdoor Extender supports multiple operating modes to match different network layouts and coverage needs.
- AP Mode: Converts a wired internet connection into outdoor wireless coverage.
- Repeater Mode: Extends an existing WiFi signal to reach areas with weak reception.
- AP + Repeater Mode: Receives and redistributes signal at the same time for wider coverage.
- Router Mode: Distributes internet from a modem to both wired and wireless devices.
Suitable for homes, farms, and multi-building setups.

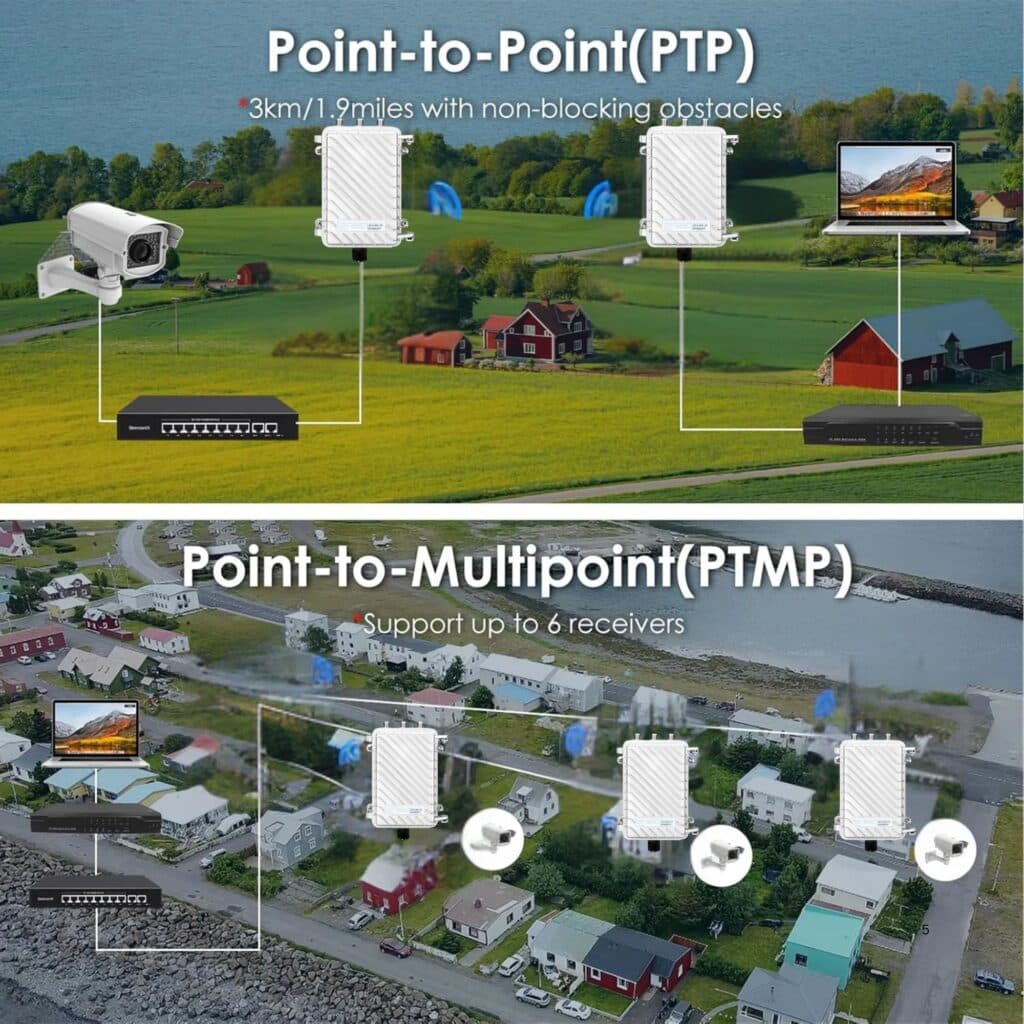

Reliable Long Range Wireless Connections
In Point to Point configuration, this outdoor WiFi 6 extender establishes a direct wireless link between two locations with clear line of sight. It supports transmission distances up to 3 km in open outdoor environments, helping connect detached buildings without trenching cables.
When configured in Point to Multipoint mode, one primary unit can communicate with multiple remote receivers. This setup is suitable for distributing internet across farms, storage facilities, residential compounds, and multi-structure properties.
Engineered for structured outdoor deployment where extended coverage is required.

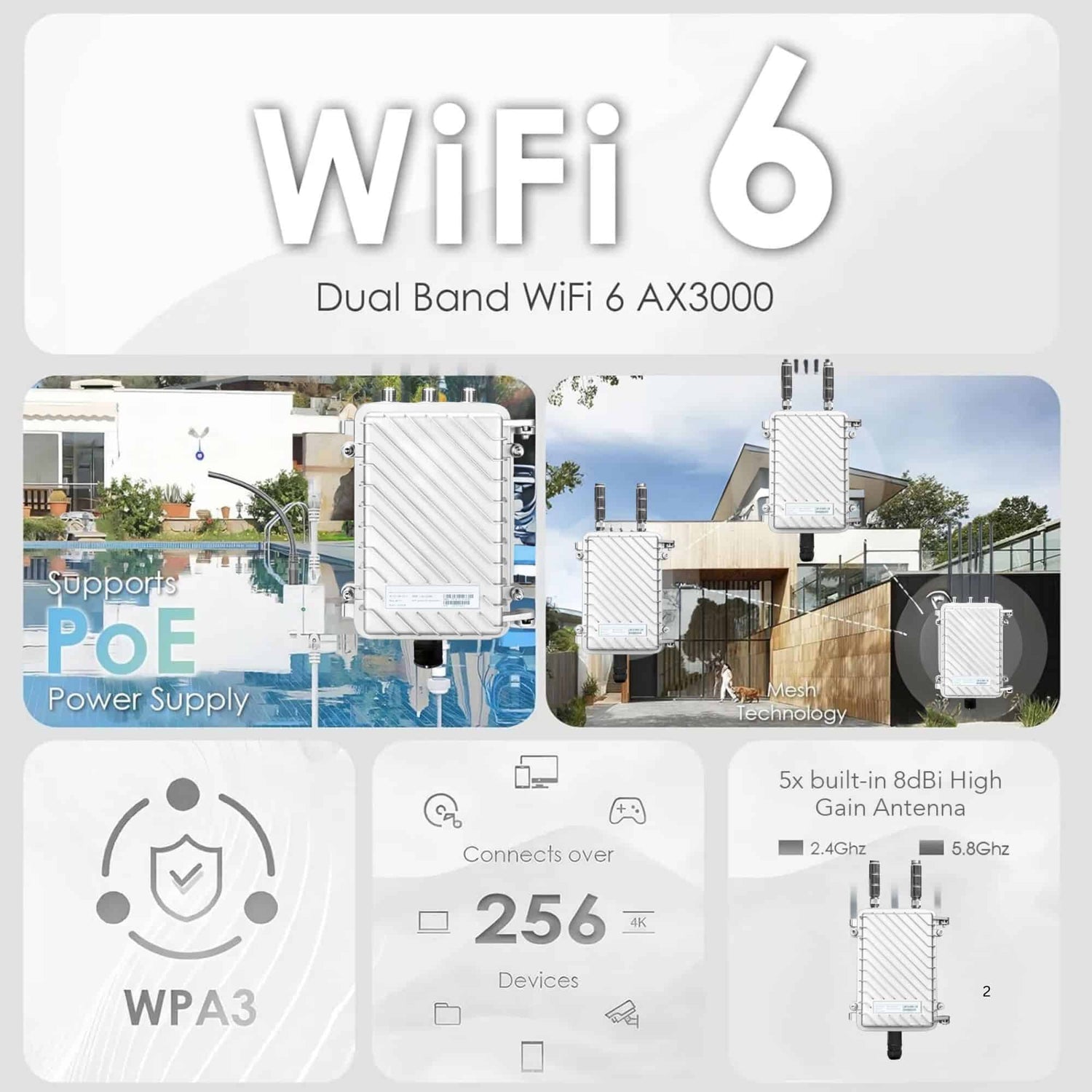

WiFi 6 Performance Built for Outdoor Coverage
This AX3000 outdoor WiFi extender operates on 2.4GHz and 5.8GHz bands to deliver balanced speed and coverage across open environments. With WiFi 6 support, it improves network efficiency and device capacity compared to previous wireless standards.
Power over Ethernet support allows both data and power transmission through a single cable, simplifying outdoor installation up to 100 meters using CAT5e or higher.
Built-in high gain antennas help maintain consistent long range signal transmission. The device supports connection of multiple client devices and integrates WPA3 encryption for secure wireless communication.

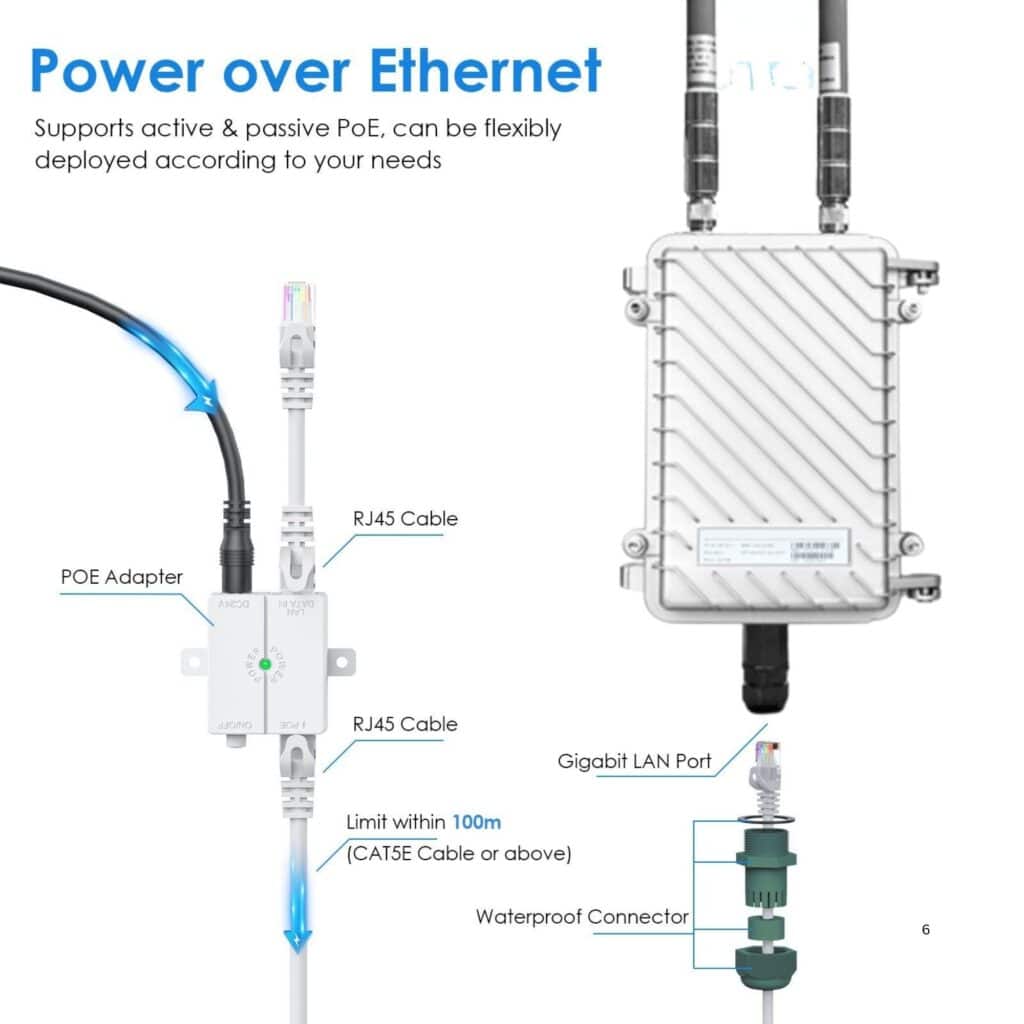

Power Over Ethernet for Simplified Outdoor Installation
This outdoor WiFi extender uses Power over Ethernet technology to deliver both power and data through a single Ethernet cable. This reduces the need for separate electrical wiring and simplifies installation on exterior walls or poles.
The Gigabit LAN port supports high speed wired connectivity, while the PoE adapter connects directly to your router or network switch. The system supports CAT5e or higher Ethernet cables with a maximum recommended length of 100 meters.
A sealed waterproof connector helps protect the cable connection from moisture and outdoor exposure, ensuring stable performance in exterior installations.

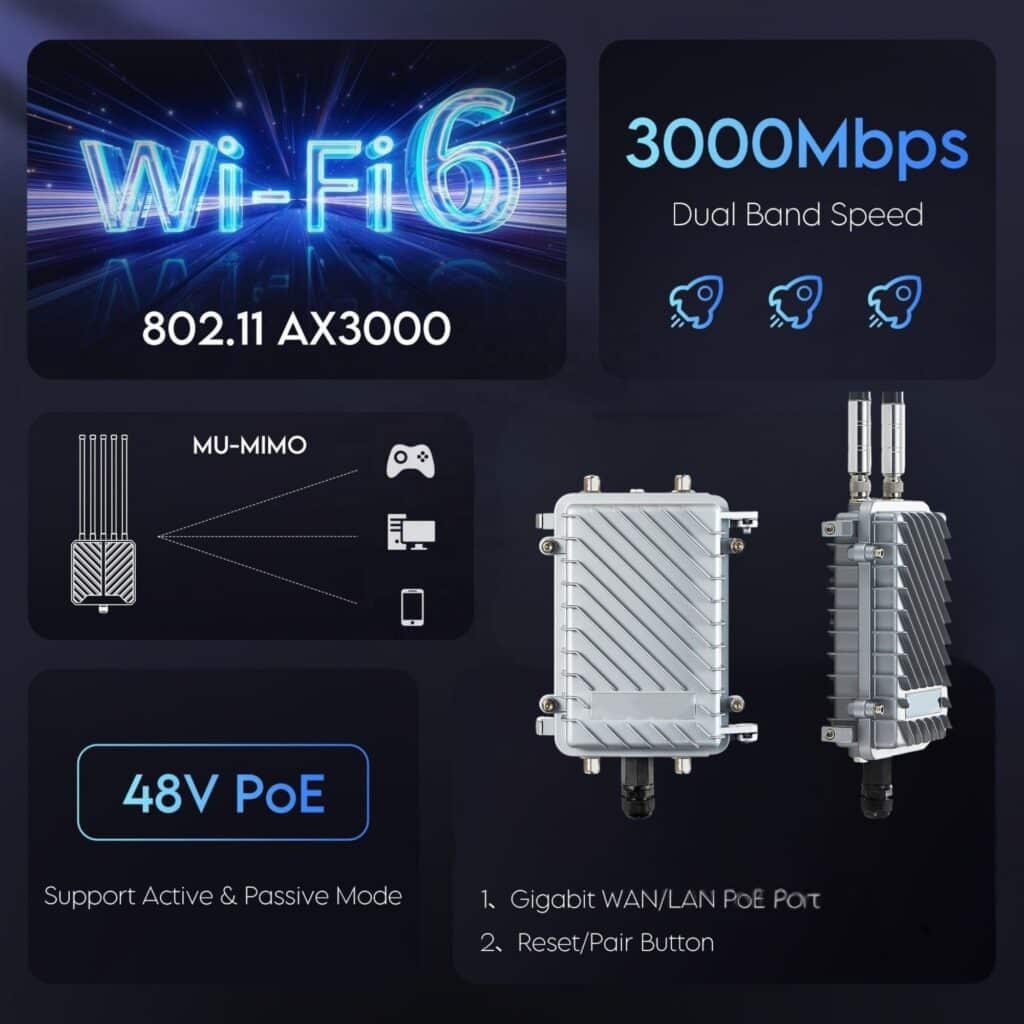

WiFi 6 AX3000 Performance for High Capacity Networks
This outdoor WiFi extender supports the 802.11ax standard with AX3000 dual band speeds up to 3000 Mbps across 2.4GHz and 5GHz bands.
MU-MIMO technology enables stable connections for multiple devices at the same time. A Gigabit WAN/LAN port supports high speed wired networking, while 48V PoE allows power and data through a single Ethernet cable for simplified installation.
Professional Outdoor Design for Harsh Conditions
The enclosure is rated IP67 to help protect internal components from dust and water exposure during outdoor installation. It is designed to operate within a temperature range of -40°C to 55°C, supporting use in both cold and hot climates.
Integrated 15KV ESD protection and 6KV lightning protection help reduce the risk of electrical damage during unstable weather conditions. The sealed housing and reinforced structure are intended for long term deployment on exterior walls or poles.
Technical Details
| Category | Specification |
|---|---|
| Main Chip | MT7981B + MT7976CN + MT7531AE (High-performance enterprise-level chip) |
| CPU Frequency | Quad-core ARM® Cortex-A53 MPCore™ 1.3GHz |
| Memory | 256MB |
| Flash | 128MB |
| Wireless Technology | – 2.4G WiFi 2×2 802.11b/g/n/ax (max 573Mbps)- 5.8G WiFi 2×2 802.11a/n/ac/ax (max 2402Mbps)- 1024QAM, OFDMA uplink/downlink, MU-MIMO- BSS Color, STBC, LDPC, Beamforming TX/RX- Power-saving features (single antenna standby, dynamic MIMO saving, enhanced auto power-saving, packet-by-packet control) |
| Device Interfaces | WAN PoE ×1 (10/100/1000Mbps adaptive)External 2.4G N-type female connector ×2External 5G N-type female connector ×2 |
| Buttons | Reset button (hold 6s for factory reset) |
| Antenna | 4x Omni Directional |
| Power | 48V 802.3af/at PoE |
| Operating/Storage Temp. | -40℃~50℃ / -50℃~70℃ |
| Operating/Storage Humidity | 10%–90% (non-condensing) / 5%–90% (non-condensing) |
| Dimensions | 290 × 150 × 75 mm |
| Weight | 1150 g |
| WiFi Frequency Range | 2.4G: 2.4–2.4835GHz5G: UNII-1 (5.15–5.35GHz), UNII-2 (5.47–5.725GHz), UNII-3 (5.725–5.825GHz) |
| WiFi Channels | 2.4G: 1–135G: 36, 40, 44, 48, 52, 60, 64, 149, 153, 157, 161, 165 |
| Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK)802.11g: OFDM (BPSK, QPSK,16-QAM)802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM) |
| Transmission Rate | 11b up to 11Mbps11g up to 54Mbps11n up to 300Mbps11ac up to 864.7Mbps11ax: 2.4G up to 573Mbps, 5G up to 2402Mbps |
| Receiver Sensitivity (2.4G) | 11b: ≤ -99 dBm @1Mbps, ≤ -90 dBm @11Mbps11g: ≤ -96 dBm @6Mbps, ≤ -78 dBm @54Mbps11n 20MHz: ≤ -96 dBm @MCS0, ≤ -76 dBm @MCS711n 40MHz: ≤ -92 dBm @MCS0, ≤ -74 dBm @MCS711ax 20MHz: ≤ -96 dBm @MCS0, ≤ -66 dBm @MCS1111ax 40MHz: ≤ -94 dBm @MCS0, ≤ -63 dBm @MCS11 |
| Receiver Sensitivity (5G) | 11a: ≤ -94 dBm @6Mbps, ≤ -78 dBm @54Mbps11n 20MHz: ≤ -94 dBm @MCS0, ≤ -74 dBm @MCS711n 40MHz: ≤ -90 dBm @MCS0, ≤ -72 dBm @MCS711ac 20MHz: ≤ -94 dBm @MCS0, ≤ -72 dBm @MCS811ac 40MHz: ≤ -90 dBm @MCS0, ≤ -66 dBm @MCS911ac 80MHz: ≤ -88 dBm @MCS0, ≤ -62 dBm @MCS911ax 20MHz: ≤ -94 dBm @MCS0, ≤ -64 dBm @MCS1111ax 40MHz: ≤ -92 dBm @MCS0, ≤ -60 dBm @MCS1111ax 80MHz: ≤ -88 dBm @MCS0, ≤ -58 dBm @MCS11 |
| Transmit Power | 11b: 23 dBm @11Mbps11g: 20 dBm @54Mbps11n (20/40MHz): 17 dBm @MCS711ac (40/80MHz): 17 dBm @MCS911ax (20/40/80MHz): 17 dBm @MCS11 |
| Working Mode | Integrated Fat-Thin |
| Capacity | 128 Users |
| Management Mode | English WEB remote / Cloud platform / Mini Program |
| Device Status | CPU usage, remaining memory, number of users, device info, logs |
| LAN Settings | Auto/Static IP, WAN/LAN VLAN, MAC address |
| DHCP | Disabled / Normal / Advanced |
| Mode Switching | Router/AP, DHCP Server On/Off |
| Wireless Config (2.4G) | Up to 5 SSIDs, VLAN ID, Encryption, password, On/Off, Region, Channel, Bandwidth, Power, AP isolation, multicast, weak signal disconnection, WDS modes, user list |
| Wireless Config (5G) | Same as 2.4G + VHT bandwidth, MESH networking (Master/Slave), WDS modes |
| ARP List | IP, MAC, Interface, Type, Status, Static/Unique/Dynamic, import/export |
| AC Platform Client | Server address, device/group name, user limits, transmission power, AP isolation, DHCP defense, connection status |
| Network Tools | Ping Test, TraceRoute |
| System Management | Backup/Import, Factory Reset, Local Upgrade, Restart (immediate/scheduled), Naming (Project/Device/Host/Internal Domain) |
FAQs
What is the maximum range in Point to Point mode?
What is the maximum range in Point to Point mode?
In Point to Point configuration, the device supports wireless links up to 3 km in open areas with clear line of sight. Actual distance may vary depending on environmental conditions.
How many devices can connect in Point to Multipoint setup?
How many devices can connect in Point to Multipoint setup?
In Point to Multipoint mode, one main unit can connect with up to 6 remote receivers for extended property coverage.
Does this device support Power over Ethernet?
Does this device support Power over Ethernet?
Yes, it supports 48V active and passive PoE, allowing both power and data to run through a single Ethernet cable up to 100 meters.
Is the enclosure suitable for outdoor installation?
Is the enclosure suitable for outdoor installation?
The unit features an IP67 rated enclosure designed for outdoor environments, including exposure to rain, dust, and varying temperatures.
What WiFi standard does this device support?
What WiFi standard does this device support?
It supports WiFi 6 (802.11ax) with AX3000 dual band performance on 2.4GHz and 5GHz frequencies.
Is this compatible with existing routers?
Is this compatible with existing routers?
The extender is designed to integrate with standard routers, network switches, and compatible mesh configurations.
